Kapton® Flexible heating elements
SKU: 003

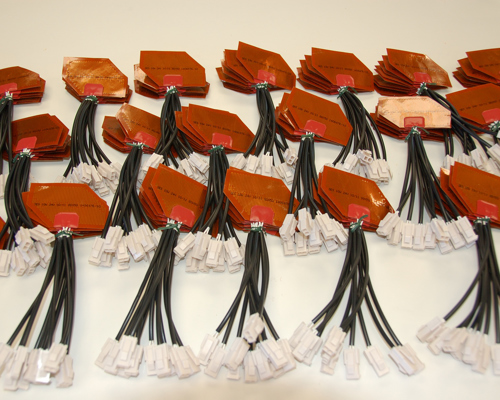

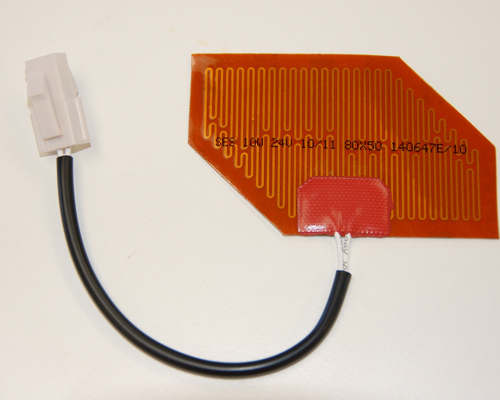

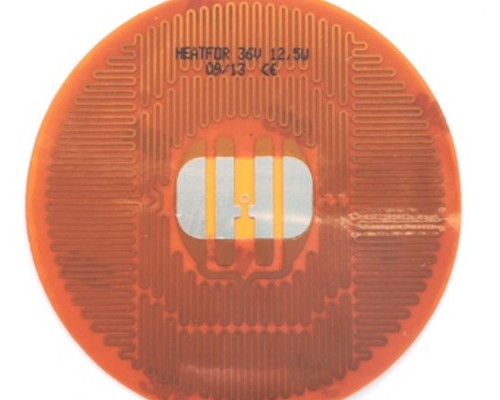

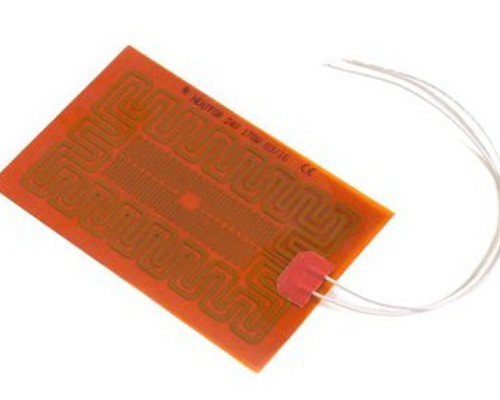

Kapton® flexible heating elements, with their extremely thin profile (0.10–0.15 mm), can be easily applied to a wide variety of metal surfaces, ensuring rapid and uniform heat transfer. This even thermal distribution prevents abnormal thermal expansion and allows the full power to be utilised with maximum efficiency.
The Kapton® insulation supports a maximum continuous operating temperature of 260°C. The high-performance adhesive backing provides secure and straightforward attachment to both steel and plastic surfaces.
Thanks to etched-foil technology, these elements can be fully customised to meet specific customer requirements, including shape, dimensions, voltage, and power output. As a result, Heatfor Kapton® flexible heating elements are ideal for a broad range of applications.
KEY FEATURES OF KAPTON® FLEXIBLE HEATING ELEMENTS
• Fully customizable shape, dimensions, voltage, power, and configuration.
• Extremely thin design.
• Uniform surface heat distribution.
• Ability to incorporate varying specific power densities across the same element.
• Simple and secure attachment via high-performance adhesive film.
• Compatible with temperature control devices mounted directly on the heater, such as thermostats, PT100 sensors, J/K thermocouples, thermal fuses, and more.
• Reduced heat loss.
• Wide voltage range from 1 V to 400V.
• Option for dual-voltage capability (e.g. 115V / 230V) on the same element.
APPLICATIONS
Medical and diagnostics equipment
Electronic Displays
Food machinery
Plastic film welding
Boilers
Printers and plotters
| THICKNESS: | Minimum: 0.10mm - Maximum: 0.15mm |
| SPECIFIC POWER: | Minimum: 0.01W/cm² - Maximum: 3.0W/cm² (thermoregulated) |
| CUSTOMISABLE: | Yes |
| LENGTH: | Minimum: 20mm - Maximum: 1000mm |
| VOLTAGE: | Minimum: 1V - Maximum: 400V |
| WIDTH: | Minimum: 20mm - Maximum: 600mm |
| TEMPERATURE: | Minimum: -60ºC - Maximum: 260ºC |
