Mica Band Heaters GM.52
Mica Band Heaters GM.52
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.

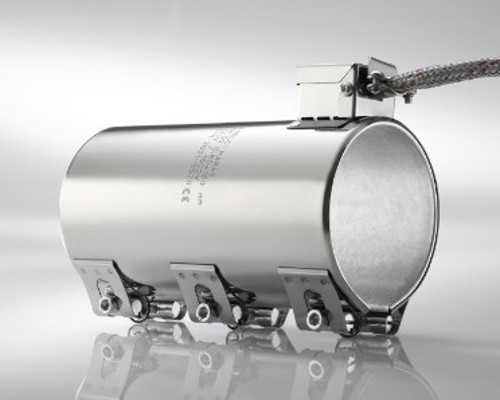

Mica Band Heaters GM.52
SKU: GM.52
Mica Band Heaters are primarily used to provide efficient and uniform heating to cylindrical surfaces. They are commonly used in:
Plastic Injection Moulding
Extrusion processes
Die Heads
Packaging Equipment
For elements with a diameter above 400mm, we recommend using more heating segments.
| Isolation Material: | Micanite |
| Diameter: | From 30 mm |
| Width: | 20 to 800 mm |
| Max Watt density: | 4 W/cmm2 |
| Voltages: | 230, 400V or other |
| Operating temperature: | Up to 350°C |
| Sheath material: | Stainless steel AISI430 |
| Heating conductor: | Nickel-Chrome 80/20 |
| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |

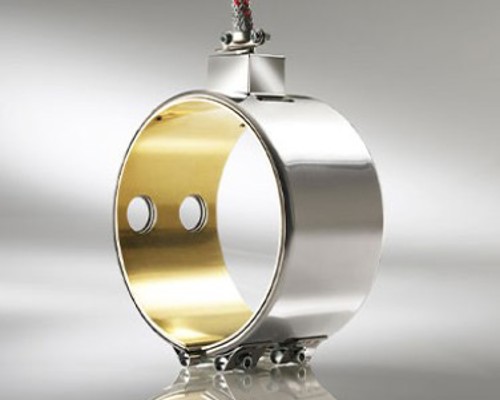

When to select Micanite Band heater with heat transfer plate GM.52
Select Band heater GM.52 when you have multiple holes and you need to improve Heat distribution and enhance Thermal Conductivity across cylinder. Heat transfer plate provides additional protection of heater element from surface to the heater. Max working temperature up to 350°C.

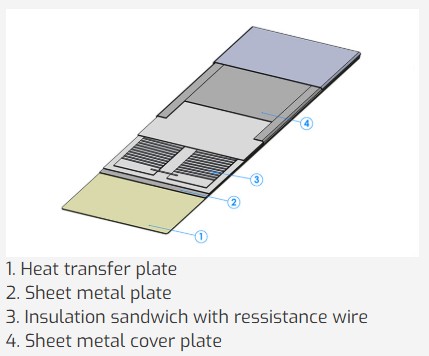

GM.52 - Integrated heat transfer plate, 1.5 mm thickness, recommended for heaters with numerous holes to ensure a more uniform heat distribution.

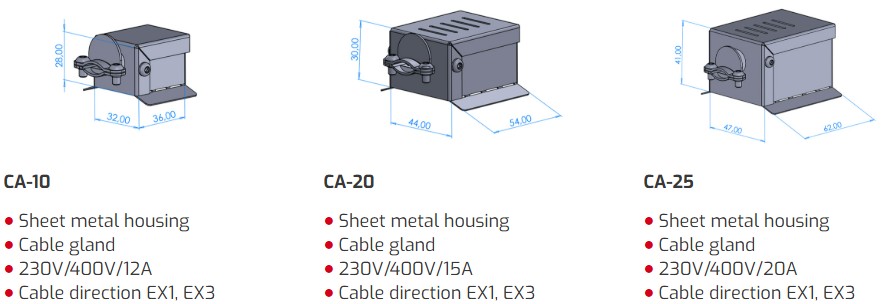

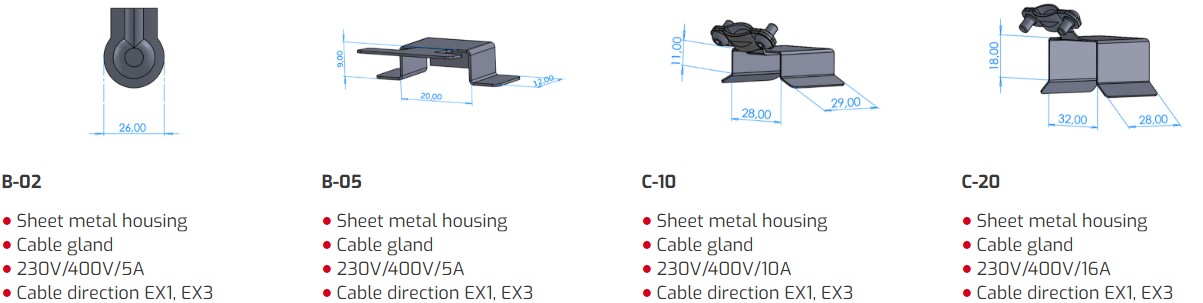

AXIAL CONNECTION BOXES:

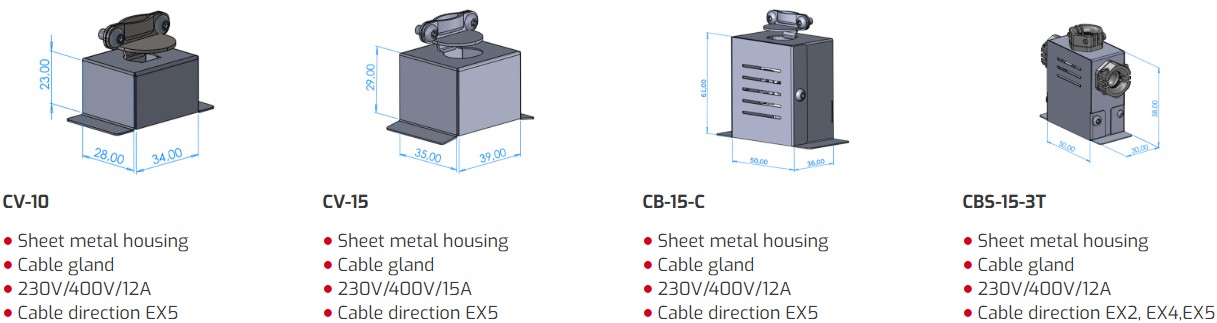

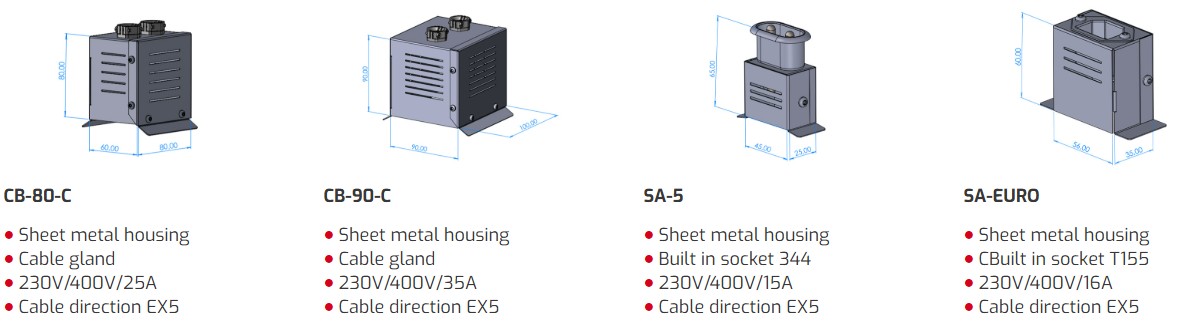

RADIAL CONNECTION BOXES:

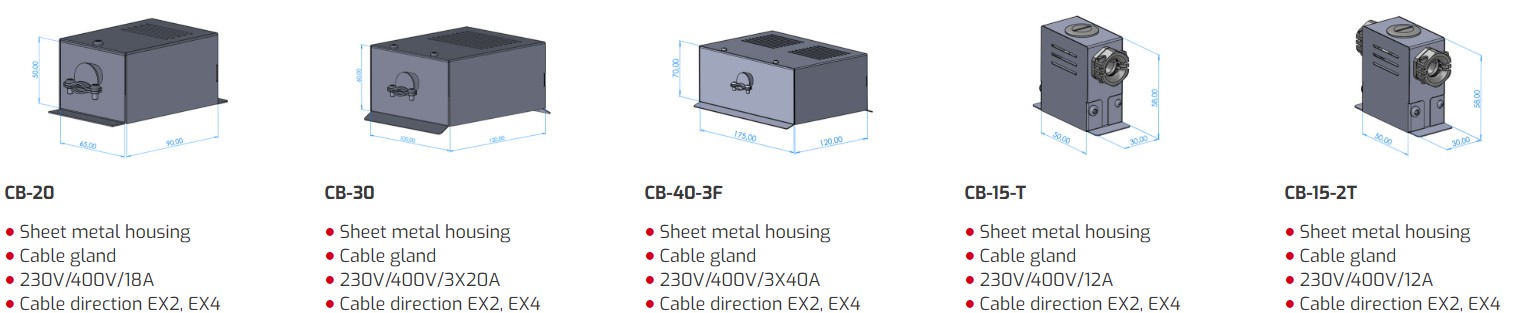

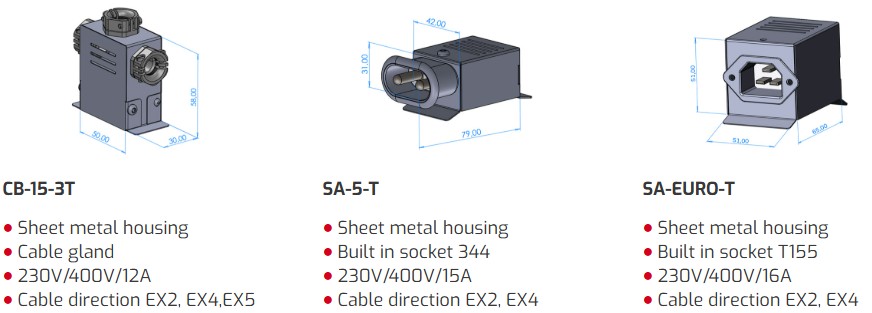

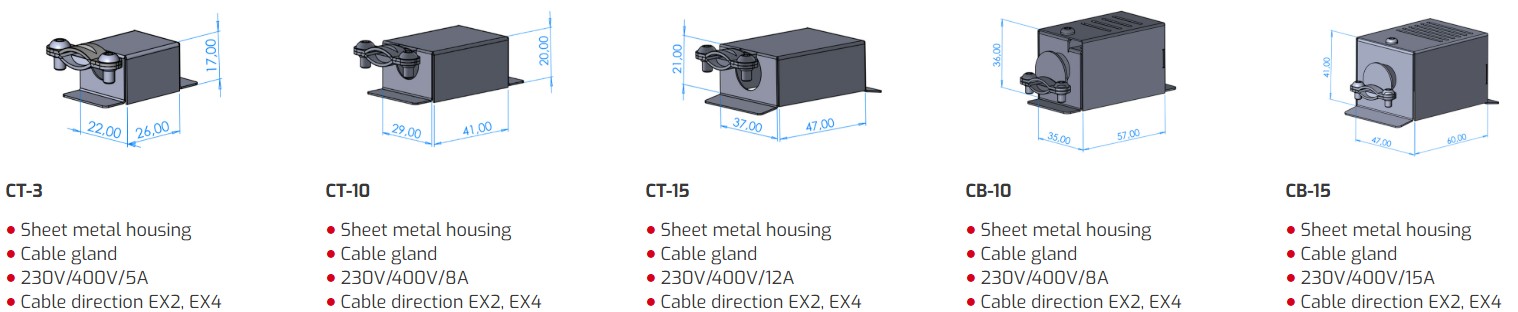

TANGENTIAL CONNECTION BOXES:
WHY CLARIAN UK?
As the exclusive UK partner of Grelci Maras, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
