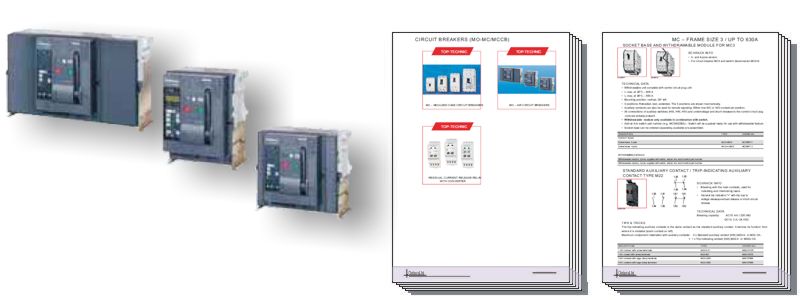

Air Circuit Breakers - MO

Air Circuit Breakers - MO

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

FRAME SIZE 1 TO 1600A – REAR-SIDE CONNECTION, HORIZONTAL

Basic unit without release, factory assembled with selected components and delivered as complete device.

FRAME SIZE 1 TO 1600A – REAR-SIDE CONNECTION, HORIZONTAL

  • DESCRIPTION
    • WEIGHT (kg)
    • ICU
    • TYPE
    • ORDER NO.

3-POLE 55 kA

  • 800 A
    • 43
    • 55 kA
    • MO1B-800
    • MO108232
  • 1000 A
    • 43
    • 55 kA
    • MO1B-1000
    • MO110232
  • 1250 A
    • 43
    • 55kA
    • MO1B-1250
    • MO112232
  • 1600 A
    • 43
    • 55 kA
    • MO1B-1600
    • MO116232

3-POLE 66 kA

  • 800 A
    • 43
    • 66 kA
    • MO1N-800
    • MO108332
  • 1000 A
    • 43
    • 66 kA
    • MO1N-1000
    • MO110332
  • 1250 A
    • 43
    • 66 kA
    • MO1N-1250
    • MO112332
  • 1600 A
    • 43
    • 66 kA
    • MO1N-1600
    • MO116332

4-POLE 55 kA

  • 800 A
    • 50
    • 55 kA
    • MO1B-4-800
    • MO108242
  • 1000 A
    • 50
    • 55 kA
    • MO1B-4-1000
    • MO110242
  • 1250 A
    • 50
    • 55 kA
    • MO1B-4-1250
    • MO112242
  • 1600 A
    • 50
    • 55 kA
    • MO1B-4-1600
    • MO116242

4 POLE 66 kA

  • 800 A
    • 50
    • 66 kA
    • MO1N-4-800
    • MO108342
  • 1000 A
    • 50
    • 66 kA
    • MO1N-4-1000
    • MO110342
  • 1250 A
    • 50
    • 66 kA
    • MO1N-4-1250
    • MO112342
  • 1600 A
    • 50
    • 66 kA
    • MO1N-4-1600
    • MO116342

FRAME SIZE 2 TO 3200A – REAR-SIDE CONNECTION, HORIZONTAL

Circuit breakers (PDF datasheet)

Product enquiry and further information (Contact us form)

FRAME SIZE 2 TO 3200A – REAR-SIDE CONNECTION, HORIZONTAL

Basic unit without release, factory assembled with selected components and delivered as complete device.

FRAME SIZE 2 TO 3200A – REAR-SIDE CONNECTION, HORIZONTAL

  • DESCRIPTION
    • WEIGHT (kg)
    • ICU
    • TYPE
    • ORDER NO.

3-POLE 55 kA

  • 2000 A
    • 56
    • 66 kA
    • MO2B-2000
    • MO220232
  • 2500 A
    • 59
    • 66 kA
    • MO2B-2500
    • MO225232

3-POLE 80 kA

  • 800 A
    • 56
    • 80 kA
    • MO2N-800
    • MO208332
  • 1000 A
    • 56
    • 80 kA
    • MO2N-1000
    • MO210332
  • 1250 A
    • 56
    • 80 kA
    • MO2N-1250
    • MO212332
  • 1600 A
    • 56
    • 80 kA
    • MO2N-1600
    • MO216332
  • 2000 A
    • 56
    • 80 kA
    • MO2N-2000
    • MO220332
  • 2500 A
    • 59
    • 80 kA
    • MO2N-2500
    • MO225332
  • 3200 A
    • 64
    • 80 kA
    • MO2N-3200
    • MO232332

4-POLE 55 kA

  • 2000 A
    • 67
    • 66 kA
    • MO2B-4-2000
    • MO220242
  • 2500 A
    • 71
    • 66 kA
    • MO2B-4-2500
    • MO225242

4-POLE 80 kA

  • 800 A
    • 67
    • 80 kA
    • MO2N-4-800
    • MO208342
  • 1000 A
    • 67
    • 80 kA
    • MO2N-4-1000
    • MO210342
  • 1250 A
    • 67
    • 80 kA
    • MO2N-4-1250
    • MO212342
  • 1600 A
    • 67
    • 80 kA
    • MO2N-4-1600
    • MO216342
  • 2000 A
    • 67
    • 80 kA
    • MO2N-4-2000
    • MO220342
  • 2500 A
    • 71
    • 80 kA
    • MO2N-4-2500
    • MO225342
  • 3200 A
    • 77
    • 80 kA
    • MO2N-4-3200
    • MO232342

FRAME SIZE 3 TO 6300A – REAR-SIDE CONNECTION, HORIZONTAL

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

FRAME SIZE 3 TO 6300A – REAR-SIDE CONNECTION, HORIZONTAL

Basic unit without release, factory assembled with selected components and delivered as complete device.

FRAME SIZE 3 TO 6300A – REAR-SIDE CONNECTION, HORIZONTAL

  • DESCRIPTION
    • WEIGHT (kg)
    • ICU
    • TYPE
    • ORDER NO.

3-POLE 100 kA

  • 4000 A
    • 82
    • 100 kA
    • MO3H-4000
    • MO340432
  • 5000 A
    • 82
    • 100 kA
    • MO3H-5000
    • MO350432
  • 6300 A
    • 90
    • 100 kA
    • MO3H-6300
    • MO363432

4-POLE 100 kA

  • 4000 A
    • 99
    • 100 kA
    • MO3H-4-4000
    • MO340442
  • 5000 A
    • 99
    • 100 kA
    • MO3H-4-5000
    • MO350442
  • 6300 A
    • 100
    • 100 kA
    • MO3H-4-6300
    • MO363442

FRAME SIZE 1 TO 1600A – WITH GUIDE FRAME, REAR-SIDE CONNECTION, HORIZONTAL

Circuit breakers (PDF datasheet)

Product enquiry and further information (Contact us form)

FRAME SIZE 1 TO 1600A – WITH GUIDE FRAME, REAR-SIDE CONNECTION, HORIZONTAL

Basic unit without release, factory assembled with selected components and delivered as complete device.

FRAME SIZE 1 TO 1600A – WITH GUIDE FRAME, REAR-SIDE CONNECTION, HORIZONTAL

  • DESCRIPTION
    • WEIGHT (kg)
    • ICU
    • TYPE
    • ORDER NO.

3-POLE 55 kA

  • 800 A
    • 70
    • 55 kA
    • MO1B-80
    • 0 MO108236
  • 1000 A
    • 70
    • 55 kA
    • MO1B-1000
    • MO110236
  • 1250 A
    • 70
    • 55kA
    • MO1B-1250
    • MO112236
  • 1600 A
    • 70
    • 55 kA
    • MO1B-1600
    • MO116236

3-POLE 66 kA

  • 800 A
    • 70
    • 66 kA
    • MO1N-800
    • MO108336
  • 1000 A
    • 70
    • 66 kA
    • MO1N-1000
    • MO110336
  • 1250 A
    • 70
    • 66 kA
    • MO1N-1250
    • MO112336
  • 1600 A
    • 70
    • 66 kA
    • MO1N-1600
    • MO116336

4-POLE 55 kA

  • 800 A
    • 84
    • 55 kA
    • MO1B-4-800
    • MO108246
  • 1000 A
    • 84
    • 55 kA
    • MO1B-4-1000
    • MO110246
  • 1250 A
    • 84
    • 55 kA
    • MO1B-4-1250
    • MO112246
  • 1600 A
    • 84
    • 55 kA
    • MO1B-4-1600
    • MO116246

4-POLE 66 kA

  • 800 A
    • 84
    • 66 kA
    • MO1N-4-800
    • MO108346
  • 1000 A
    • 84
    • 66 kA
    • MO1N-4-1000
    • MO110346
  • 1250 A
    • 84
    • 66 kA
    • MO1N-4-1250
    • MO112346
  • 1600 A
    • 84
    • 66 kA
    • MO1N-4-1600
    • MO116346

FRAME SIZE 2 TO 3200A – WITH GUIDE FRAME, REAR-SIDE CONNECTION,    HORIZONTAL

Circuit breakers (PDF datasheet)

Product enquiry and further information (Contact us form)

FRAME SIZE 2 TO 3200A – WITH GUIDE FRAME, REAR-SIDE CONNECTION, HORIZONTAL

Basic unit without release, factory assembled with selected components and delivered as complete device.

FRAME SIZE 2 TO 3200A – WITH GUIDE FRAME, REAR-SIDE CONNECTION, HORIZONTAL

  • DESCRIPTION
    • WEIGHT (kg)
    • ICU
    • TYPE
    • ORDER NO.

3-POLE 100 kA

  • 4000 A
    • 148
    • 100 kA
    • MO3H-4000
    • MO340436
  • 5000 A
    • 148
    • 100 kA
    • MO3H-5000
    • MO350436
  • 6300 A
    • 160
    • 100 kA
    • MO3H-6300
    • MO363436

4-POLE 100 kA

  • 4000 A
    • 190
    • 100 kA
    • MO3H-4-4000
    • MO340446
  • 5000 A
    • 190
    • 100 kA
    • MO3H-4-5000
    • MO350446
  • 6300 A
    • 227
    • 100 kA
    • MO3H-4-6300
    • MO363446

ELECTRONIC RELEASE ETU15B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU15B

Basic protection for installations and systems without time-selective grading up to 3200A.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Instantaneous short-circuit protection, adjustable between 2...8 x ln
  • Overload indicator
  • Setting of protective functions by means of rotary switch

ELECTRONIC RELEASE ETU15B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU15B

  • With protection function LI
    • ETU15B
    • MO890150

ELECTRONIC RELEASE ETU25B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU25B

Classic protection for installations, motors and systems using time-selcetive grading up to 6300A.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Short time-delay short-circuit protection, adjustable between 1,25...12 x l and
  • Instantaneous short-circuit protection, fixed to 20 x l ,max. 55kA
  • Replaceable rating plug allows instant adaptability to the required system currents, thus ensuring overload protection of 100 A to 6300 A
  • Overload indicator
  • Display of cause of release through LED
  • Option for testing the release
  • Setting of protective functions by means of rotary sw

ELECTRONIC RELEASE ETU25B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU25B

  • With protection function LSI
    • ETU25B
    • MO890250

ELECTRONIC RELEASE ETU27B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU27B

Classic protection for installations, motors and systems using time-selcetive grading up to 6300A.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Short time-delay short-circuit protection, adjustable between 1,25...12 x l and n
  • Instantaneous short-circuit protection, fixed to 20 x l ,max. 55kA n
  • Replaceable rating plug allows instant adaptability to the required system currents, thus ensuring overload protection of 100 A to 6300 A
  • Overload indicator
  • Display of cause of release through LED
  • Option for testing the release
  • Connectable neutral conductor protection
  • Permanently integrated earth-fault protection for the calculation of the earth-fault current through vectorial current summation
  • Current transformer for N conductor has to be ordered separately
  • Setting of protective functions by means of rotary switch

ELECTRONIC RELEASE ETU27B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU27B

  • With protection function LSING
    • ETU27B
    • MO890270

ELECTRONIC RELEASE ETU45B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU45B

An inexpensive allrounder for intelligent installations and all sorts of industrial applications – “Internal Cubicle BUS”.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Short time-delay short-circuit protection, adjustable between 1,25...12 x l and n
  • Instantaneous short-circuit protection, fixed to 20 x l ,max. 55kA n
  • Replaceable rating plug allows instant adaptability to the required system currents, thus ensuring overload protection of 100 A to 6300 A
  • Overload indicator
  • Display of cause of release through LED
  • Option for testing the release
  • Adjustable time-lag class for overload protection
  • Switch-selectable characteristic of the overload and short-time delay short-ciruit range (current discriminate) for finer selective conditioning to downstream fuses or protective devices
  • Thermal memory as restart protection in the case ot tripped motor circuits
  • Connectable and adjustable neutral conductor protection
  • Modular earth-fault protection, with separately adjustable alarm and trip function
  • Communication interface, metering function (Plus), connection of external modules as option or retrofit option
  • Optional high-contrast display with viewing angle adjustment
  • Setting of protective functions by means of rotary switch or slide switch

ELECTRONIC RELEASE ETU45B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU45B

  • With LSIN protective function, excl. display
    • ETU45B
    • MO890450
  • With LSING protective function incl.earth-fault protection unit, excl.display
    • ETU45B
    • MO89045G
  • With LSIN protective function, incl. display
    • ETU45B
    • MO89D450
  • With LSING protective function incl.earth-fault protection unit, incl. dispay
    • ETU45B
    • MO89D45G

Order current converter for N conductor protection, and current converter for sensing ground fault current in earthed neutral c onductor of transformer separately. The internal transformers for neutral conductors can be ordered by adding a “Z” and short order code “F23”.

ELECTRONIC RELEASE ETU55B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU55B

The release for special safety requirements when it comes to adjustability with an exclusive external parameterisation input for generator- and motor protection, industrial applications – “internal Cubicle BUS”.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Short time-delay short-circuit protection, adjustable between 1,25...12 x ln
  • Instantaneous short-circuit protection, fixed to 20 x l ,max. 50kA n
  • Replaceable rating plug allows instant adaptability to the required system currents, thus ensuring overload protection of 100 A to 6300 A
  • Overload indicator
  • Display of cause of release through LED
  • Option for testing the release
  • Adjustable time-lag class for overload protection
  • Switch-selectable characteristic of the overload and short-time delay short-ciruit range (current discriminate) for finer selective conditioning to downstream fuses or protective devices
  • Thermal memory as restart protection in the case ot tripped motor circuits
  • Connectable and adjustable neutral conductor protection
  • Modular earth-fault protection, with separately adjustable alarm and trip function
  • Communication interface, metering function (Plus), connection of external modules as option or retrofit option
  • Optional high-contrast display with viewing angle adjustment
  • Two protective parameter sets that can be stored separately in the release (switch selectable through external signal)
  • Overload protection that can be switched off for use with modern operating mechanism technology
  • Adjustable lag of the delayed short-circuit protection up to 4000 ms
  • Neutral conductor protection adjustable to l = 2 x l N n
  • Setting of protective functions by means of Breaker Data Adapter or through communication interface

ELECTRONIC RELEASE ETU55B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU45B

  • With protection function LSIN
    • ETU55B
    • MO890455
  • With LSING protective function incl. earth-fault protection unit
    • ETU 5B
    • MO89055G

Order current converter for N conductor protection, and current converter for sensing ground fault current in earthed neutral conductor of transformer separately. The internal transformers for neutral conductors can be ordered by adding a “Z” and short order code “F23”.

ELECTRONIC RELEASE ETU76B

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ELECTRONIC RELEASE ETU76B

The multitalented system with graphical display for network analysis – “integrated Cubicle BUS”.

TECHNICAL DATA

  • Adjustable overload release with l t characteristic with fixed time delay t = 10 seconds at 6 2 R x lR
  • Short time-delay short-circuit protection, adjustable between 1,25...12 x ln
  • Instantaneous short-circuit protection, fixed to 20 x l ,max. 50kA n
  • Replaceable rating plug allows instant adaptability to the required system currents, thus ensuring overload protection of 100 A to 6300 A
  • Overload indicator
  • Display of cause of release through LED
  • Option for testing the release
  • Adjustable time-lag class for overload protection
  • Switch-selectable characteristic of the overload and short-time delay short-ciruit range (current discriminate) for finer selective conditioning to downstream fuses or protective devices
  • Thermal memory as restart protection in the case ot tripped motor circuits
  • Connectable and adjustable neutral conductor protection
  • Modular earth-fault protection, with separately adjustable alarm and trip function
  • Communication interface, metering function (Plus), connection of external modules as option or retrofit option
  • Two protective parameter sets that can be stored separately in the release (switch selectable through external signal)
  • Overload protection that can be switched off for use with modern operating mechanism technology
  • Adjustable lag of the delayed short-circuit protection up to 4000 ms
  • Neutral conductor protection adjustable to l = 2 x l N n
  • Setting of protective functions by means of Breaker Data Adapter or through communication interface
  • Graphical display of all parameters and event/curve characteristics
  • Storage of event and causes of release for specific error analysis
  • High contrast, background-lit graphical display with sleep mode

ELECTRONIC RELEASE ETU76B

  • DESCRIPTION
    • TYPE
    • ORDER NO. FACTORY INSTALLED

ELECTRONIC RELEASE ETU76B

  • With protection function LSIN
    • ETU76B
    • MO890760
  • With LSING protective function incl. earth-fault protection unit
    • ETU76B
    • MO89076G

Order current converter for N conductor protection, and current converter for sensing ground fault current in earthed neutral conductor of transformer separately. The internal transformers for neutral conductors can be ordered by adding a “Z” and short order code “F23”.

TRANSFORMER FOR N CONDUCTOR

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

TRANSFORMER FOR N CONDUCTOR

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Internal transformers for Neutral conductor – includes wiring kit

  • Frame size 1
    • MO90AA11
    • MO810F23
  • Frame size 2
    • MO90AA12
    • MO820F23
  • Frame size 3
    • MO90AA13
    • MO830F23

External transformer for N conductor

  • Frame size 1
    • MO90AA21
  • Frame size 2
    • MO90AA22
  • Frame size 3
    • MO90AA23

External transformer for N conductor with connection pieces

  • Frame size 1
    • MO90AA31
  • Frame size 2
    • MO90AA32
  • Frame size 3
    • MO90AA33

AUTOMATIC RESET OF THE RECLOSING LOCKOUT

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

AUTOMATIC RESET OF THE RECLOSING LOCKOUT

If the ETU is released the circuit-breaker cannot be reclosed until the release has been either electrically or manually reset. With the option “automatic reset of the reclosing lockout”, the circuit-breaker is ready-to-close immediately after a release. The reset of the manual trip indicator is not contained in this option.

AUTOMATIC RESET OF THE RECLOSING LOCKOUT

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Lead sealable cover plate for ETU15B to ETU55B

  • MO90AT45

Lead-sealable cover plate for ETU76

  • MO90AT46

Automatic reset of the reclosing lock out

  • MO90AK21
  • MO800K01

Remote reset magnet– for mechanical trip display DC 24 V

  • MO90AK03
  • MO800K10

Remote reset magnet– for mechanical trip display AC 208-240 V/DC 220–250 V

  • MO900AK06
  • MO800K13

Retrofittable internal Cubicle BUS wiring for connection to Terminal X8 – (male connectors not included) for ETU45B to ETU76B

  • MO90AK30

Retroffitable internal wiring for connecting external N- and G transformers to Terminal X–8 (male connectors not included)

  • MO90AK31

LOCKING DEVICES

Circuit breakers (PDF datasheet)

Product enquiry and further information (Contact us form)

LOCKING DEVICES

“Safe OFF“ switch-independent interlock device to prevent unauthorised closing This special feature available for draw-out circuit breakers prevents closing independently of the switch, thus satisfying main switch conditions to EN 60204 (VDE 0113) - Mains disconnecting equipment. Unauthorised closing is not possible after replacement of the circuit breaker. The circuit breaker must be switched off to activate the interlock. The interlock device is bloc ked when the circuit breaker is switched on. The blocking is only effective when the key has been removed. The safety key can only be removed in the “OFF” position.

LOCKING DEVICES

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Locking device against unauthorised closing, in operator panel Mains equipment meets EN 60204 (VDE 0113) regulations for main switches.

  • Installation kit FORTRESS or CASTELL
    • MO900BA31
  • Made by Ronis
    • MO90BA33
    • MO800S08
  • Made by KIRK-Key
    • MO90BA34
  • Made by Profalux
    • MO90BA35
    • MO800S09
  • Made by CES
    • MO90BA36
    • MO800S01
  • Made by IKON
    • MO90BA38
    • MO800S03
  • Installation kit for padlocks
    • MO90BA41
    • MO800S07

Locking device against unauthorised closing, for draw-out circuit breaker Mains equipment meets EN 60204 (VDE 0113) regulations for main switches, comprising lock in cabinet door, effective in operating position, the function remains the same when replacing the switch.

  • Made by CES
    • MO90BA51
    • MO800R61
  • Made by IKON
    • MO90BA53
  • Made by KIRK key
    • MO90BA57
  • Made by Ronis
    • MO90BA58
    • MO800R68
  • Made by Profalux
    • MO90BA50
    • MO800R60

Locking device for operator lever using padlock

  • Locking device for operating lever (padlock not included)
    • MO90BA71
    • MO800S33

Lock device to prevent movement of withdrawable circuit breaker – Safety lock for mounting on switch

  • Made by CES
    • MO90BA73
    • MO800S71
  • Made by IKON
    • MO90BA75
  • Made by Profalux
    • MO90BA76
    • MO800S75
  • Made by Ronis
    • MO90BA77
    • MO800S76

SEALING CAP FOR MECHANICAL ON/OFF

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

SEALING CAP FOR MECHANICAL ON/OFF

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Protective covers for mechanical ON/OFF each comprising 2 transparent covers for sealing or attachment of padlocks, Cover with 6,35 mm bore (for tool actuation), lock mount for safety lock for key operation

  • Lock not included
    • MO90BA21
  • Made by CES
    • MO90BA22
  • Made by IKON
    • MO90BA24

LOCKING MECHANISMS

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

LOCKING MECHANISMS

Locking device against moving if the cubicle door is open for withdrawable circuit-breakers

The crank handle is blocked if the cubicle door is open and cannot be withdrawn. It is not possible to move withdrawable circuit-breakers. The blocking is only effective if the crank handle is inserted.

Interlocking of cubicle door

The cubicle door cannot be opened if the

  • fixed-mounted circuit-breaker ist closed (transmission of the locking signal by means of Bowden wire) or
  • if the withdrawable circuit-braker is in connected position

LOCKING MECHANISMS

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Prevents movement of draw-out circuit breaker in disconnect position,comprising Bowden cable and lock in cabinet door

  • Made by CES
    • MO90BA81
    • MO800R81
  • Made by IKON
    • MO90BA83
  • Made by Profalux
    • MO90BA85
    • MO800R85
  • Made by Ronis
    • MO90BA86
    • MO800R86
  • Installation kit for padlocks
    • MO90BA87

Prevents opening of cabinet door in ON position (defeatable)

  • For permanent installation
    • MO90BB12
    • MO800R30

Prevents opening of cabinet door in ON position (defeatable)

  • For guide frame
    • MO90BB13
    • MO800S30

Prevents movement while cabinet door open

  • For guide frame
    • MO90BB15
    • MO800R50

MECHANICAL INTERLOCK

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

MECHANICAL INTERLOCK

Mutual mechanical circuit-breaker interlocking

The module for mutual mechanical interlocking can be implemented for two or three circuit-breakers and is simple to adapt to the respective version. Fixed-mounted and withdrawable circuit-breakers are compatible and can be implemented together in a single system.

The circuit-breakers can be installed either next to one another or on top of one another, whereby the distance between circircuit- breakers is determined only by the lenght of the Bowden wire.

MECHANICAL INTERLOCK

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Mutual mechanical interlock, with Bowden cable 2000 mm (one required per circuit breaker)

  • Module for fixed-mounted circuit breakers
    • MO90BB21
    • MO800S55
  • Module for draw-out circuit breaker with frame. To be ordered separately.
    • MO90BB24
    • MO800R55
  • Module for guide frame. To be ordered separately.
    • MO90BB22
    • MO800R56
  • Module for draw-out circuit breaker. To be ordered separately.
    • MO90BB23
    • MO800R57

Bowden cable

  • 2000 mm
    • MO90BB45
  • 3000 mm
    • MO90BB46
  • 4500 mm
    • MO90BB47

SIGNALISATION AND CONTROL

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

SIGNALISATION AND CONTROL

  • Ready-to-close signalling switch
    • MO circuit breaker come with a visual ready-to-close signal indicator as standard. The option is also available to indicate ready-to-close using a signalling switch. This signalling switch is included as standard for switches operated via a communications interface.
  • Signalling switch for auxiliary release
    • One signalling contact is available per auxiliary release for polling switch status of the auxiliary releases.
  • Tripped signal switch
    • In the event that the circuit breaker tripped due to an overload, short-circuit, earth-fault or extended protection function, this can be indicated with a tripped signal switch. This indicator switch is available as an option. This signalling switch is indcelud as standard for circuit breakers operated via a communications interface.
  • Operating cycle counter
    • A 5-digit operating cycle counter is available in connection with the motor operator. The counter increments by “1” once the storage spring is fully charged.
  • “Electrical ON“ button
    • Used for the electrical switch-on of the circuit breaker via a local, electical “ON” or remote operation.
  • Sealable cap covers “Electrical ON” button
    • The “Electrical ON button” comes with a sealable cap as standard.
  • Motor cut off switch
    • Rotary switch for switching off (automatic charging) of motor operator.

SIGNALISATION AND CONTROL

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Ready-to-close signalling switch

  • MO90AH01
  • MO800C22

Signalling switch, 1st auxiliary release

  • MO90AH02
  • MO800C26

Signalling switch, 2nd auxiliary release

  • MO90AH03
  • MO800C27

Tripped signal switch

  • MO90AH04
  • MO800K07

Mechanical operating cycle counter

  • MO90AH07
  • MO800C01

Stored energy status signalling switch

  • MO90AH08
  • MO800C20

Position indicator switch for guide frame, 1st block (3rd microswitch)

  • MO90AH11
  • MO800R15

Position indicator switch for guide frame, 2nd block (6th microswitch)

  • MO90AH12
  • MO800R16

Electical ON button (button+wiring) with sealable cap

  • MO90AJ02
  • MO800C11

Electical ON button (button+wiring) with CES installation kit

  • MO90AJ03
  • MO800C12

Motor cut-off switch, assembly on operator panel

  • MO90AJ06
  • MO800S25

EMERGENCY OFF button, mushroom button instead of mechanical OFF button

  • MO90BA72
  • MO800S24

1ST AUXILIARY RELEASE AFTER ETU

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

1ST AUXILIARY RELEASE AFTER ETU

Up to two auxiliary release switches can be installed at the same time. The 1st release must always be a shunt release. 2nd auxiliary release see below

1ST AUXILIARY RELEASE AFTER ETU

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Shunt release

  • DC 24 V – 100 % ED
    • MO90AD01
    • MO890B00
  • DC 30 V
    • MO90AD02
    • MO890C00
  • DC 48 V
    • MO90AD03
    • MO890D00
  • DC 60 V
    • MO90AD04
    • MO890E00
  • DC 110 V/AC 110 V
    • MO90AD05
    • MO890F00
  • DC 220 V/AC 230 V
    • MO90AD06
    • MO890G00

2ND AUXILIARY RELEASE AFTER ETU

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

2ND AUXILIARY RELEASE AFTER ETU

  • Possible combinations:
    • 1 shunt release or 1 undervoltage release
    • or 2 shunt releases
    • or 1 shunt release + 1 undervoltage release.

2ND AUXILIARY RELEASE AFTER ETU

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Shunt release

  • DC 24 V – 100 % ED
    • MO90AD01
    • MO8900B0
  • DC 30 V
    • MO90AD02
    • MO8900C0
  • DC 48 V
    • MO90AD03
    • MO8900DO
  • DC 60 V
    • MO90AD04
    • MO8900E0
  • DC 110 V/AC 110 V
    • MO90AD05
    • MO8900F0
  • DC 220 V/AC 230 V
    • MO90AD06
    • MO8900G0

Undervoltage release – undelayed (≥80ms), short time-delayed≤( 200ms)

  • DC 24 V
    • MO90AE01
    • MO8900J0
  • DC 30 V
    • MO90AE02
    • MO8900K0
  • DC 48 V
    • MO90AE03
    • MO8900L0
  • DC 60 V
    • MO90AE07
    • MO8900U0
  • DC 110-125 V/AC 110-127 V
    • MO90AE04
    • MO8900M0
  • DC 220-250 V/AC 208-240 V
    • MO90AE05
    • MO8900N0
  • AC 380-415 V
    • MO90AE06
    • MO8900P0

Undervoltage release – time-delayable 0,2 s to 3,2 sec

  • DC 48 V
    • MO90AE11
    • MO8900Q0
  • DC 110-125 V/AC 110-127 V
    • MO90AE12
    • MO8900R0
  • DC 220-250 V/AC 208-240 V
    • MO90AE13
    • MO8900S0
  • AC 380-415 V
    • MO90AE14
    • MO8900T0

MOTOR OPERATOR

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form).

MOTOR OPERATOR

  • For automatic charging of the stored energy mechanism.
  • Is switched on when the stored energy mechanism is released and the control voltage is available.
  • Automatically switches off after charging. Manual actuation of the storage can function independently

MOTOR OPERATOR

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Motor operator DC 220-250 V/AC 208-240 V

  • MO90AF04
  • MO894000

Motor operator DC 110-125 V/AC 110-127 V

  • MO90AF03
  • MO895000

Motor operator DC 24-30 V

  • MO90AF01
  • MO896000

Closing solenoid 110 V AC/DC

  • MO90AD05
  • MO892000

Closing solenoid 220 V AC/DC

  • MO90AD06
  • MO893000

AUXILIARY CONTACTS

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

AUXILIARY CONTACTS

  • Always includes 2 N/O + 2 N/C

AUXILIARY CONTACTS

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

2 N/O + 2 N/C additionally

  • MO90AG01
  • MO890004

4 N/O additionally

  • MO890007

3 N/O + 1 N/C additionally

  • MO890008

2 N/O additionally

  • MO90AG02

1 N/O + 1 N/C additionally

  • MO90AG03

DOOR SEALING FRAME, COVER

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

DOOR SEALING FRAME, COVER

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Door sealing frame

  • MO90AP01
  • MO80T400

Safety cover IP55 is not for use in combination with door sealing frame, removable cover is opened from both sides

  • MO90AP02

SHUTTER

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

SHUTTER

  • The cover strips of the shutter lock the laminated contacts of the guide frame if the withdrawable circuit-breaker is wdithrawn so that they fulfil the function of a touch guard.
  • The cover strips can be manually opened with the strip lifter.
  • The cover strips can be fixed in different positions with padlocks and protected from unauthorized manipulation.

SHUTTER

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Shutter 3 pole

  • Frame size 1
    • MO90AP04
    • MO810R21
  • Frame size 2
    • MO90AP06
    • MO820R21
  • Frame size 3
    • MO90AP07
    • MO830R21

Shutter 4 pole

  • Frame size 1
    • MO90AP08
    • MO814R21
  • Frame size 2
    • MO90AP11
    • MO824R21
  • Frame size 3
    • MO90AP12
    • MO834R21

ARC CHUTE COVER/SHUTTER

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ARC CHUTE COVER/SHUTTER

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Arc chute cover Parts set for guide frame, 3 pole

  • Frame size 1
    • MO90AS32 M
    • O810R10
  • Frame size 2
    • MO90AS36
    • MO820R10
  • Frame size 3
    • MO90AS38
    • MO830R10

Arc chute cover Parts set for guide frame, 4 pole

  • Frame size 1
    • MO90AS42
    • MO814R10
  • Frame size 2
    • MO90AS44
    • MO824R10
  • Frame size 3
    • MO90AS46
    • MO834R10

SUPPORT BRACKET

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

SUPPORT BRACKET

For mounting fixed-installed circuit breakers vertically, for frame sizes 1 and 2 only (1 set = 2 pcs.).

SUPPORT BRACKET

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Support bracket, frame size 1/2

  • MO90BB50

CUBICLE BUS MODULES

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

CUBICLE BUS MODULES

  • DESCRIPTION
    • ORDER NO. AS SPARE PART
    • ORDER NUMBER FACTORY INSTALLED

Digital output module with rotary coding switch, relay outputs

  • MO90AT26

Digital output module, configurable, relay outputs

  • MO90AT20

Digital input module

  • MO90AT27

Analogue output module

  • MO90AT23

ZSS module

  • MO90AT21

PARAMETERISATION SYSTEMS, COMMUNICATION

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

PARAMETERISATION SYSTEMS, COMMUNICATION

  • DESCRIPTION
    • ORDER NO.

Breaker Data Adapter (BDA)

  • Parameterisation, operation, monitoring and diagnosis of SENTRON circuit breakers via the local interface: Breaker Data Adapter, connecting cable to SENTRON 3WL circuit breakers and to programming device (e.g. laptop); runs on Internet Explorer with JAVA2 VM 1.4.0-01
    • MO90AT28

BDA Plus

  • Same as BDA, also with Ethernet interface for connection to Ethernet/Intranet/Internet
    • MO90AT33

Connecting cable for BDA Plus

  • Conencting cable for connection of BDA Plus to Terminal X8 on SENTRON 3WL circuit breaker. Required when a COM 15 or other external CUBICLE BUS modules are not present, 2 m in length.
    • MO90BC21

Switch ES Power parameterisation software

  • Parameterisation, operation, monitoring and diagnosis of SENTRON circuit breakers via the PROFIBUS DB; Runs on Windows95, Windows98, WindowsNT, Windows2000 and Windows XP Professional also requires additional PROFIBUS card, e.g. CP5613
    • MO90CC10

ACCESSORIES FOR COMMUNICATION

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

ACCESSORIES FOR COMMUNICATION

  • DESCRIPTION
    • ORDER NO.

Pre-assembled cables for Cublicle BUS modules

  • 0,2 m long, for connection to SENTRON 3WL with COM15
    • MO90BC04
  • 1 m long, for connection to SENTRON 3WL with COM15
    • MO90BC02
  • 2 m long, for connection to SENTRON 3WL with COM15
    • MO90BC03
  • 2 m long, for connection to SENTRON 3WL without COM15
    • MO90BC05

Voltage transformer, 3-pole for SENTRON 3WL with Plus measurment function

  • 230 V/100 V, Class 0,5
    • MO90BB70
  • 380–630 V/100 V, Class 0,5
    • MO90BB68

RETROFFITING AND REPLACEMENT PARTS

Circuit breakers (PDF datasheet)Product enquiry and further information (Contact us form)

RETROFFITING AND REPLACEMENT PARTS

  • DESCRIPTION
    • ORDER NO.

PROFIBUS retrofit kit

  • Retrofit kit for PROFIBUS communication includes COM15, BSS and cable kit for all MO circuit breakers of 3WL type with ETU45B, ETU55B and ETU76B releases
    • MO90AT12
  • COM15 PROFIBUS Module
    • MO90AT15
  • Breaker Status Sensor (BSS)
    • MO90AT16
  • Plus measurement function (requires voltage transformer)
    • MO90AT03

Product enquiry and further information

We would be delighted to offer free application advice, technical information on products, free quotations and delivery information.

Name

Telephone

Product enquiry & further information
