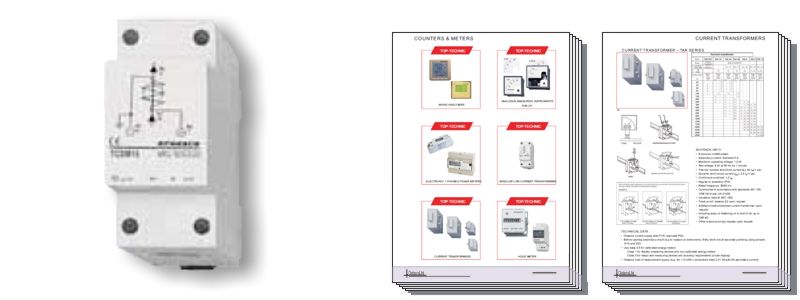

MODULAR, TCSM15 SERIES

  • 2 MW housing with primary max. 15 mm
  • Fastenings: DIN rail
  • Class 3, 40 - 80 A
  • Class 1, 100 -150 A
  • Power outputs 2 / 3 / 5 VA
  • Secondary current 1 A upon request
  • 75 A model upon request

RANGE OF APPLICATION

  • Fits all DIN-rail mounted devices such as RCCB switches etc., 45 mm slit
  • Easy to thread through
  • For crude display of measured value
  • Space saving - only 2 MW wide

TIPS & TRICKS

Do not mix up direct of current (energy flow) when pushing through. The secondary load (e.g. 2 VA) must match the measuring device usage!

MODULAR, TCSM15 SERIES

DESCRIPTION

  • DIM. (WxHxD) mm
  • ORDER NO.

Low-current transformer 40 A

  • 35,5x58x85
  • MG900220

Low-current transformer 50 A

  • 35,5x58x85
  • MG900221

Low-current transformer 60 A

  • 35,5x58x85
  • MG900222

Low-current transformer 80 A

  • 35,5x58x85
  • MG900224

Low-current transformer 100 A

  • 35,5x58x85
  • MG900225

Low-current transformer 120 A

  • 35,5x58x85
  • MG900226

Low-current transformer 150 A

  • 35,5x58x85
  • MG900227
