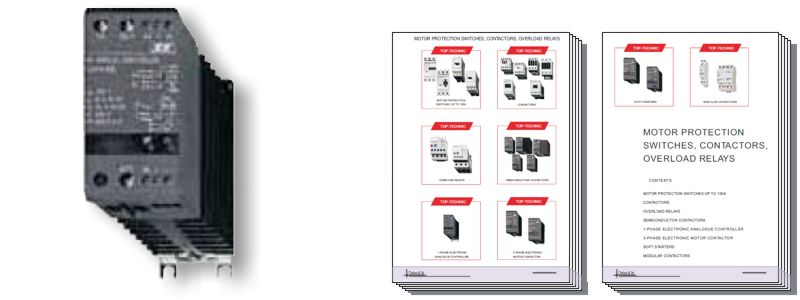

1-PHASE ELECTRONIC ANALOGUE CONTROLLER

  • Analogue controller for accurate process temperature control
  • Heating element control with phase angle or burst firing control
  • Current loop control: 0-20 mA, 4-20 mA
  • Voltage control: 0-10 V DC
  • Manual control 10 k 1 potentiometer
  • Reverse action possible
  • Rated voltage: 230 or 400 V AC
  • Rated current: up to 30 or 50 A AC-51 (AC 1)
  • Integrated EMC filter

DESCRIPTION

  • DIM. (WxHxD) mm
  • ORDER NO.

Analogue controller 30 A/380–480 V

  • 45x110x128,1
  • LAA14306

Analogue controller 50 A/380–480 V

  • 90x110x128,1
  • LAA14506

1 Phase Electronic Analogue Controller

Motor protection switches contactors overload relays (PDF datasheet)Product enquiry and further information (Contact us form)

MOTOR CONTACTORS

  • Designed for direct start-up of 3-phase motors
  • Rated operating current: 15 A AC-3 (10 HP at 400 V 3 Phase)
  • Operating voltage range: from 24 to 600 V AC 50 or 60 Hz
  • Control voltage range: from 24 to 480 V AC or 24-60 V DC
  • LED operating status indicator
  • Degree of protection IP 20
  • Compact modular design, 45 mm installation width on DIN rail
  • Meets requirements of standard EN 6047-4-2
  • Genuine contact-free motor contactor for extremely long service life
  • Unlimited number of start/stop cycles possible per hour

RATED CURRENT

  • RATED VOLTAGE
  • CONTROL VOLTAGE
  • DIM. (WxHxD) mm
  • ORDER NO.

15 A

  • 208-240 VAC 50/60 Hz
  • 24-480 V AC 24-60 V DC
  • 45x110x124,3
  • LAM32154

15 A

  • 400-480 VAC 50/60 Hz
  • 24-480 V AC 24-60 V DC
  • 45x110x124,3
  • LAM34154

15 A

  • 550-600 VAC 50/60 Hz
  • 24-480 V AC 24-60 V DC
  • 45x110x124,3
  • LAM36154
