Electronic Meters

Electronic Meters

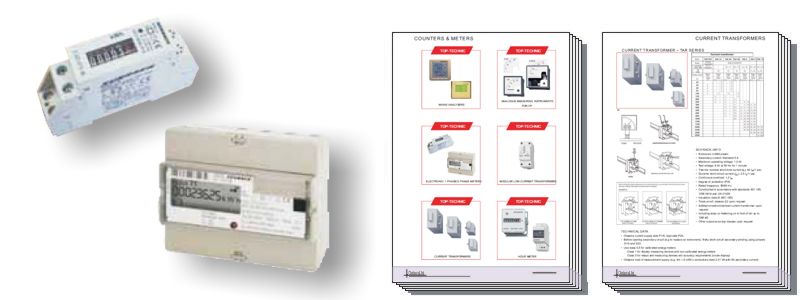

ELECTRONIC 1-PHASE METER

  • 230V AC, 5 (25) A, 50 Hz with return stop
  • Specification is equivalent EN 62052 / EN62053 CE
  • Accuracy class 1
  • Installation on DIN-Rail (DIN-EN 50022)
  • 1 S U = 18 mm (DIN 43864)
  • Regard of harmonic content up to 7kHz

TECHNICAL DATA

  • S0-port: opto-electronic coupler (S0-DIN 43864)
  • Rate of impulse: RA = 0,5 Wh/Imp.
  • LED flash on, if power on the kW-meter without load and is blink synchronic 0,5 Wh/Imp. = RL
  • Display: 5 counts for kWh with 1 decimal place
  • Input energy / friction loss: appr. 0,5W
  • Rated voltage: 195V up to 253V
  • Rated current: 0,025A up to 25A
  • Inrush current at cosφ = 1 typical 22mA
  • Temperature range: –200C up to +500C
  • Air humidity max.: 75%, for a short time 95%

ELECTRONIC 1-PHASE METER

DESCRIPTION

  • ORDER NO.

Electronic 1-phase meter

  • MGEIZ125

Electronic Meters

ELECTRONIC 3-PHASE METER

  • Frequency: 50Hz, 60Hz, 16 2/3 Hz
  • Accuracy: active energy, class 1 or 2 according to IEC 62053-21
  • Measuring types: active energy, 1 tarif register with non-reverse ratchet
  • Data retention time: without voltage in the FLASH/EEPROM, at least 20 years
  • Relative humidity: 90% at 40°C, non-condensing
  • Operation mechanical button for operation of display

ELECTRONIC 3-PHASE METER

DESCRIPTION

  • ORDER NO.

Electronic 3-phase meter

  • MGDIZ005

Electronic 3-phase meter

  • MGDIZ063
